Precise and fast wrapping with the ELHO Proliner 1500!

The ELHO Proliner 1500 can wrap six layers of plastic around a bale with a diameter of 1.2 metres in approximately 30 seconds from loading to offloading.

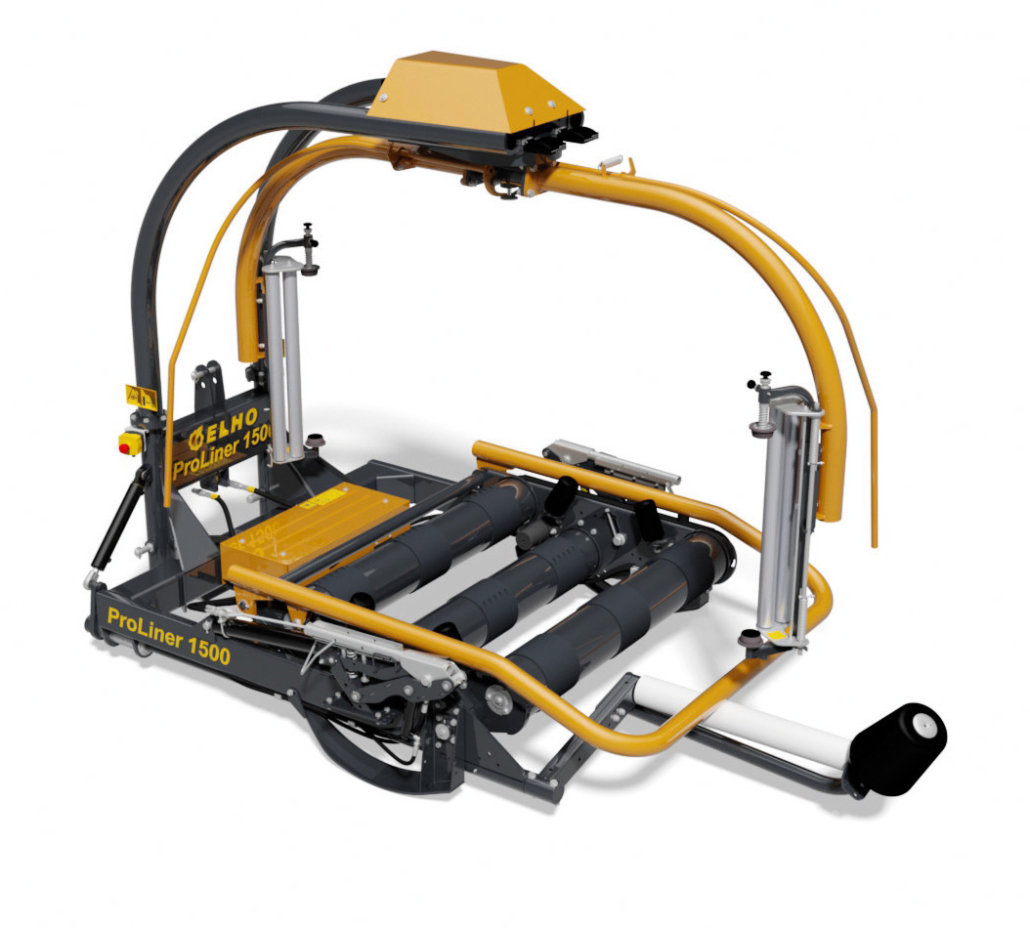

The ELHO Proliner 1500 is a robust 3-point mounted round bale wrapper that is operated and transported behind the tractor.

The wrap cycle is fully automatic from loading to offloading.

The easy-to-use ELHO Opus control system enables high-speed wrapping – even in excess of 60 bales per hour, depending on the availability of bales. The machine is equipped with two 750mm plastic pre-stretchers with film break sensors.

The robust load arm is designed to centre the bale to the middle of the wrapping table. The wrapping table has three rollers whose synchronised rolling ensures smooth rotation of the bales. The bale is supported sideways by four support rollers. The hydraulic system has a valve block that can utilise the LS hydraulic system. A bale turning ramp is available as an option to make collecting bales even faster.

The ELHO Proliner 1500 – a robust and fast mounted bale wrapper


Control Automatic
Number of pre-stretchers, 750 mm 2
Recommended bale diameter, m 1,2-1,4
Recommended bale width, m 1,2
Max bale weight, kg 1000
LS hydraulics readiness X
Max wrapping speed, RPM 50
Weight, kg 1150
Length, m 2,7/3,53
Width, m 2,05
Height, m 2,44
Oil pressure, bar 180-200
Hydraulic flow max/min l/min 50/20
Electrical connection ISO/TR 12369 12V/10 Amp
Hydraulic coupling, single action 1
Hydraulic connection-free return 1
