SIDELINER 1540 M, 1540 PRO
About

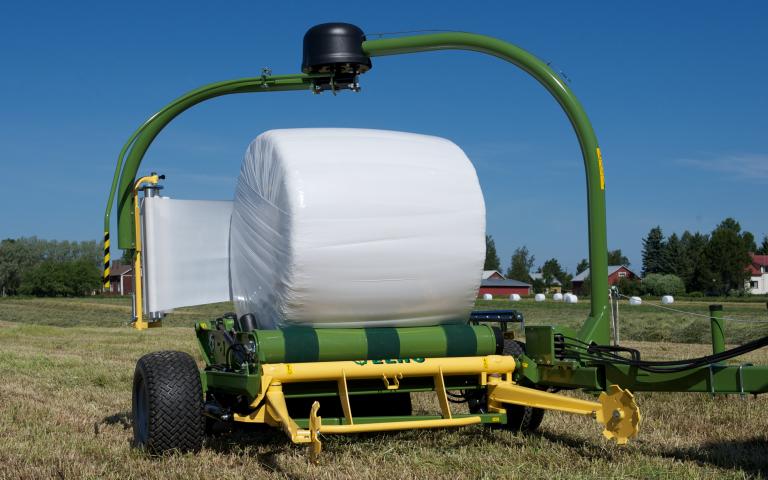

The ELHO Sideliner 1540 M and 1540 PRO bale wrapper produces tidy bales efficiently!
The ELHO Sideliner bale wrapper features a low wrapping table for loading and wrapping and offloading while retaining a suitable unloading height for allowing the bale to rotate. These robust machines have been popular for decades.

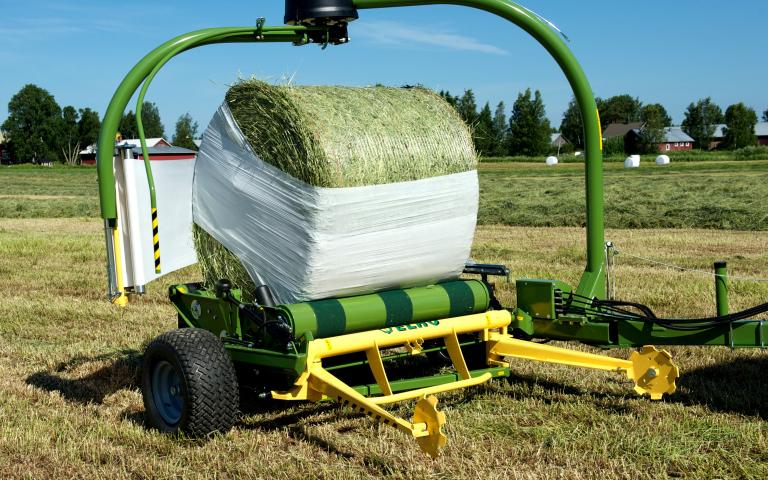

The loading fork automatically lifts the bale to the centre of the wrapping table, so the weight is evenly distributed on both the wheels and the tractor. The sturdy wrapping table is equipped with three chain-driven support rollers and is mounted directly to the frame. Four end-support rolls keep the bale in place at its sides. The sturdy drop mat reduces the risk of damage to wrapped bales, especially on rough ground.
ELHO has manufactured thousands of Sideliner bale wrappers, and the success story continues!
Technical Data
| M | PRO | |
| Control | Manual | Automatic |
| Number of pre-stretchers, 750 mm | 1 | 1 |
| Recommended bale diameter, m | 1-1,5 | 1-1,5 |
| Recommended bale width, m | 1,2 | 1,2 |
| Max bale weight, kg | 1200 | 1200 |
| Max wrapping speed, RPM | 35 | 45 |
| Tyre size | 26×12.00-12 | 26×12.00-12 |
| Light kit | X | X |
| Weight, kg | 1320 | 1350 |
| Length, m | 4,2 | 4,2 |
| Width, m | 2,5 | 2,5 |
| Height, m | 2,7 | 2,8 |
| Oil pressure, bar | 180-200 | 180-200 |
| Hydraulic flow max/min l/min | 50/20 | 50/20 |
| Hydraulic coupling, single action | 1 | 1 |
| Hydraulic connection-free return | 1 | 1 |
| Electrical connection ISO/TR 12369 | – | 12V/10 Amp |
| X = Standard O = Option – = Not available |
