Silomatic 1010 Wrapper

About

Top quality forage and the best overall economic efficincy with the reliable ELHO SiloMatic 1010!

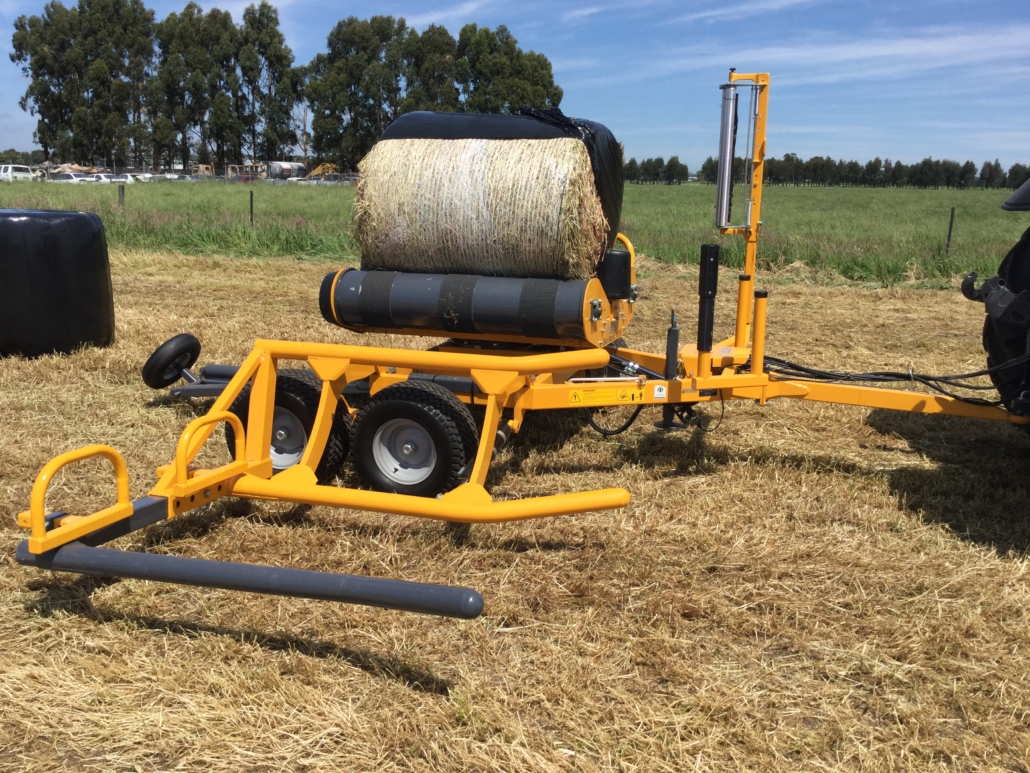

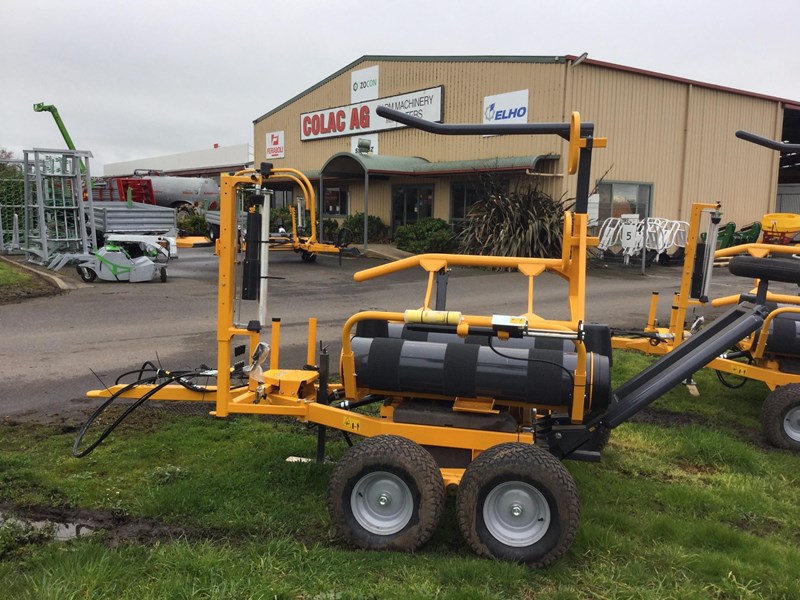

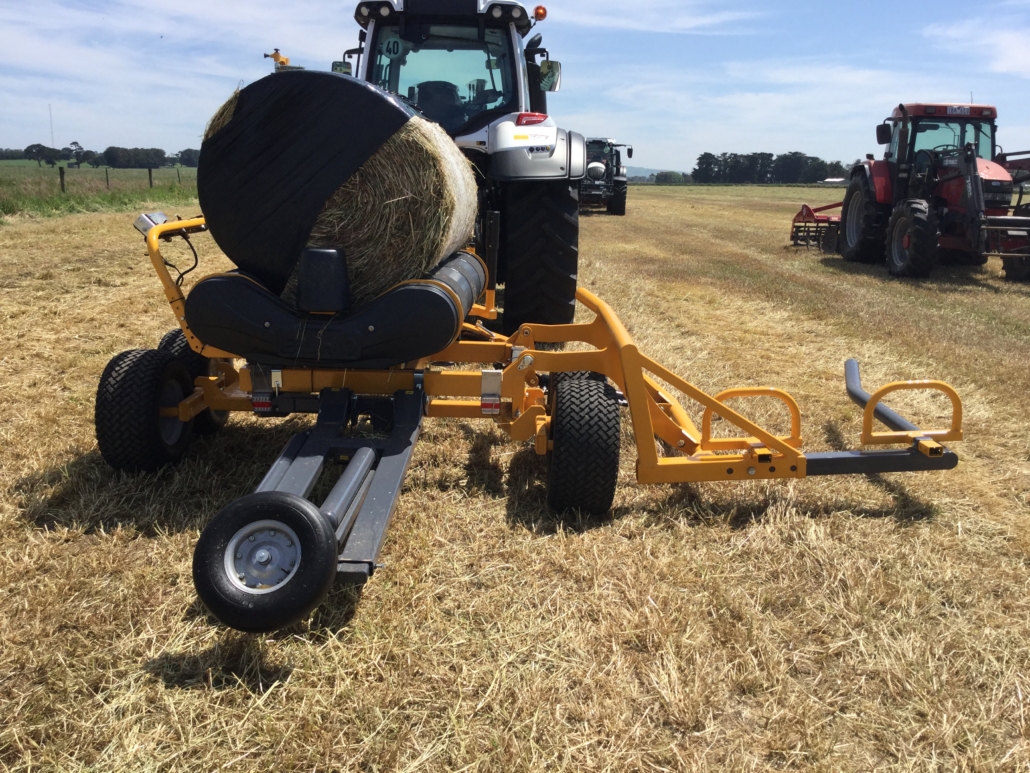

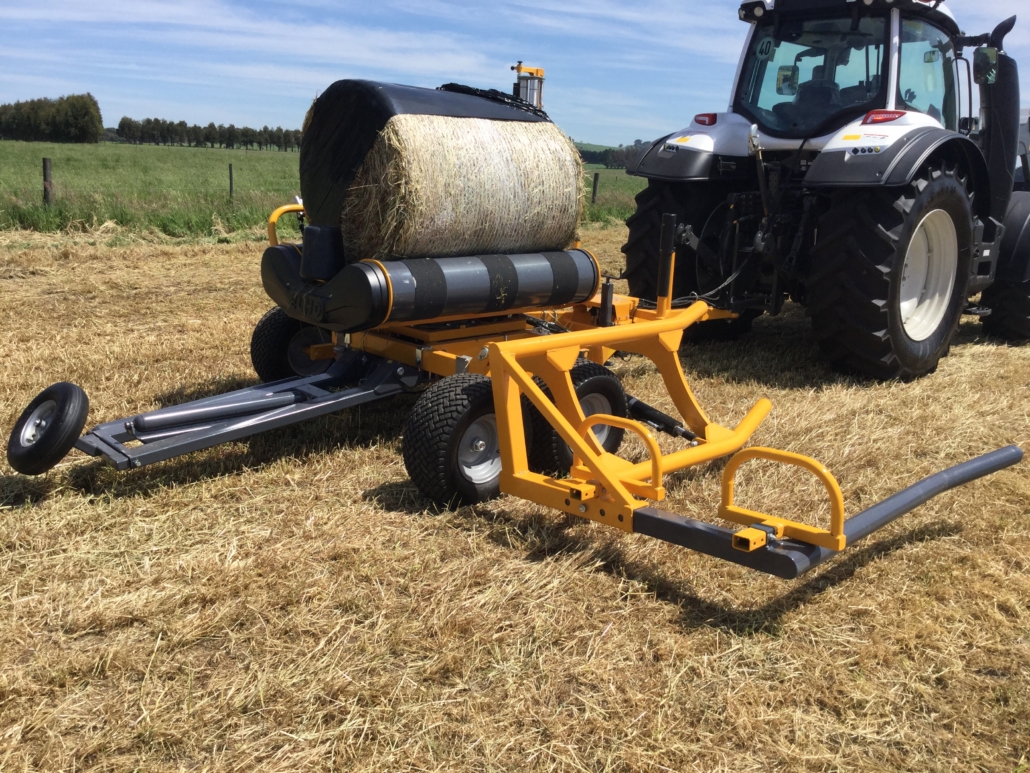

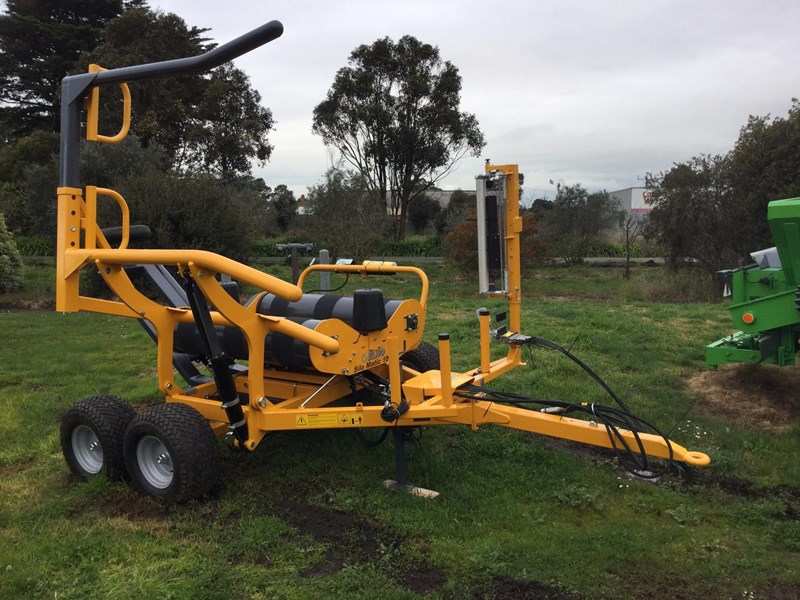

The trailed ELHO SiloMatic 1010 bale wrapper’s solid frame, turntable and powerful loading fork enable the simultaneous transport of one bale while wrapping another bale, while the asymmetric positioning of the turntable ensures that the machine remains stable.
The SiloMatic 1010 is equipped with two large synchronised support rollers. The large and wide tyres of the standard bogie protect from packing the soil and bear the load well, even on wet fields. The loading fork is partly built-in, which improves stability during the loading stage.
The ELHO SiloMatic 1010 has been wrapping for decades! It’s in perpetual motion!

Specifications

Control: Cable
Pre-stretchers, 750 mm, pcs: 1
Recommended bale diameter, m: 1,2-1,5
Recommended bale width, m: 1,2
Maximal bale weight, kg1250
Max wrapping speed, rpm: 20
Tyre size : 26×12.00-12
Road lights : Standard
Weight, kg: 1150
Length, m: 3,5
Width, m: 2,35
Height, m: 2,7
Oil pressure, bar: 150-200
Hydraulic flow max/min l/min: 45/15
Electrical connection ISO/TR 12369: 150-200
Hydraulic flow max/min l/min: 45/15
Electrical connection ISO/TR 12369: 12V/10 Amp
Hydraulic connection-single action: 1
Hydraulic connection-free return: 1
