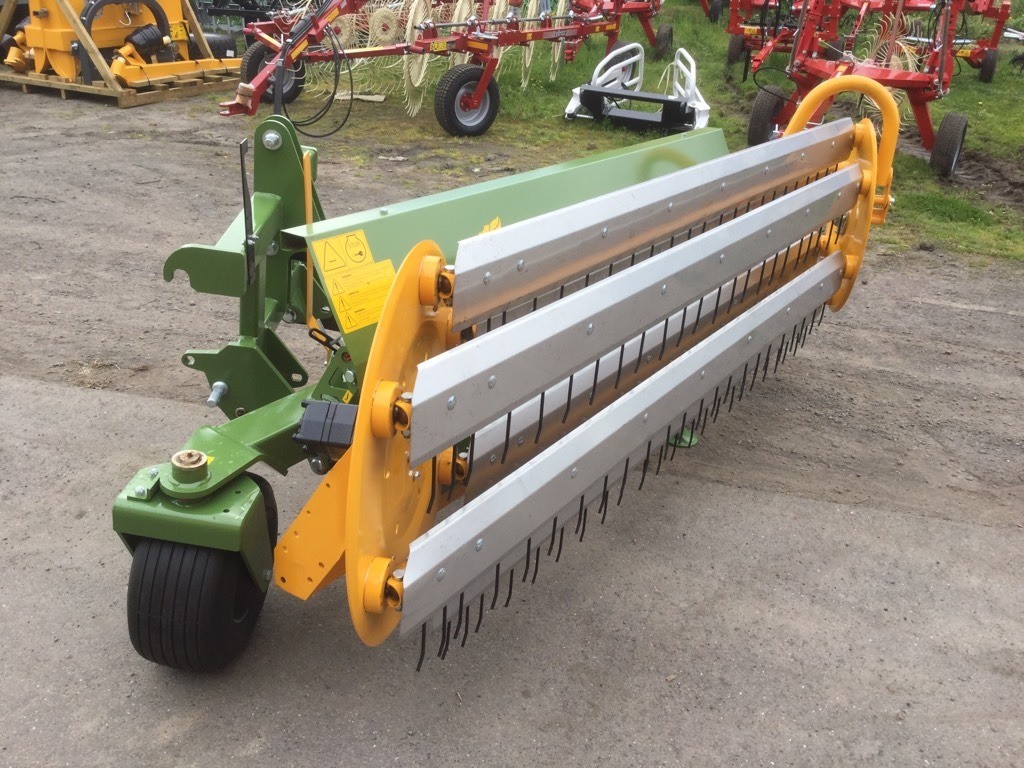

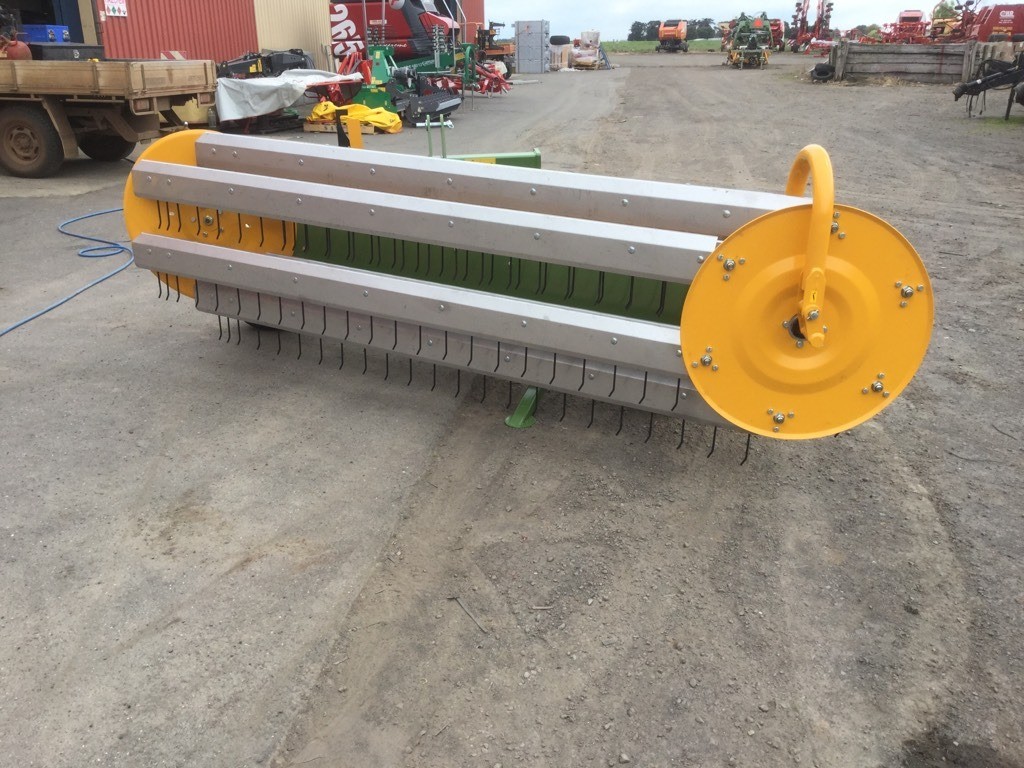

Twin 4600 RAKE

About

Lifts the forage > forage stays clean.

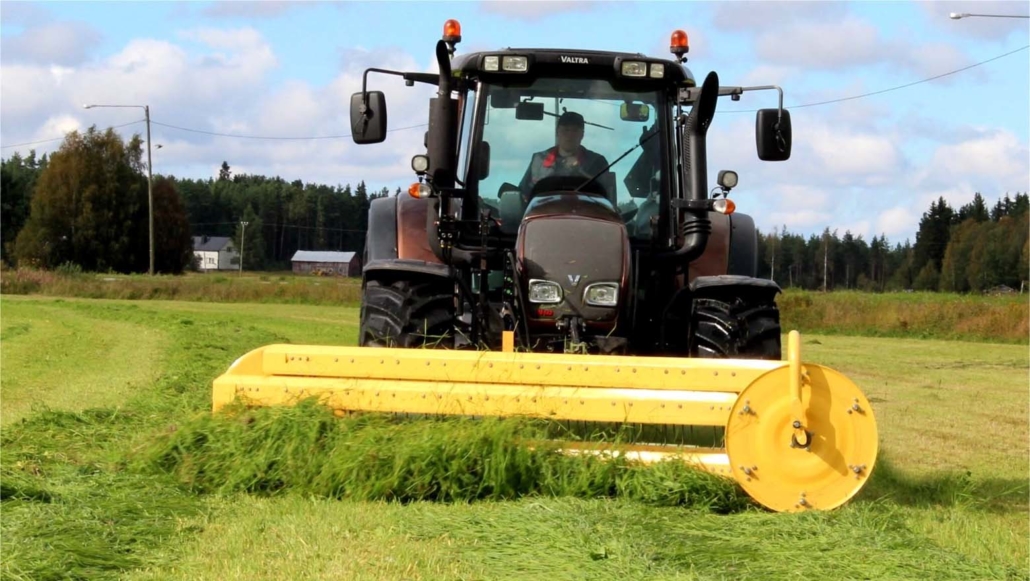

Can be mounted to a front lift or a front loader.
Hydraulic > does not require a power transmission Shaft.
Can combine two or three swaths and turn the Swaths upside down for drying, or widespread.
Does not pick up stones.

Specifications

Working width, m: 4,1
Swathwidth adjustment mechanical: Standard
Tine pattern: 6
Rotor diameter, mm: 655
Number of rake tines, pcs: 138
Transport width, m: 3
Transport height, m: 1,6
Transport length, m: 2,3
Tyre size: 18X8.5-8
Weight, kg: 540
Hydraulic connection-single action: 1
Hydraulic connection-free return: 1
Hydraulic motor, pcs: 1
Required oil flow: 25l/min
Hydraulic pressure, min/max bar: 175-210
3 point linkage: Cat.2
Front linkage: Cat.2
Front loader (Euro) connection: Standard
