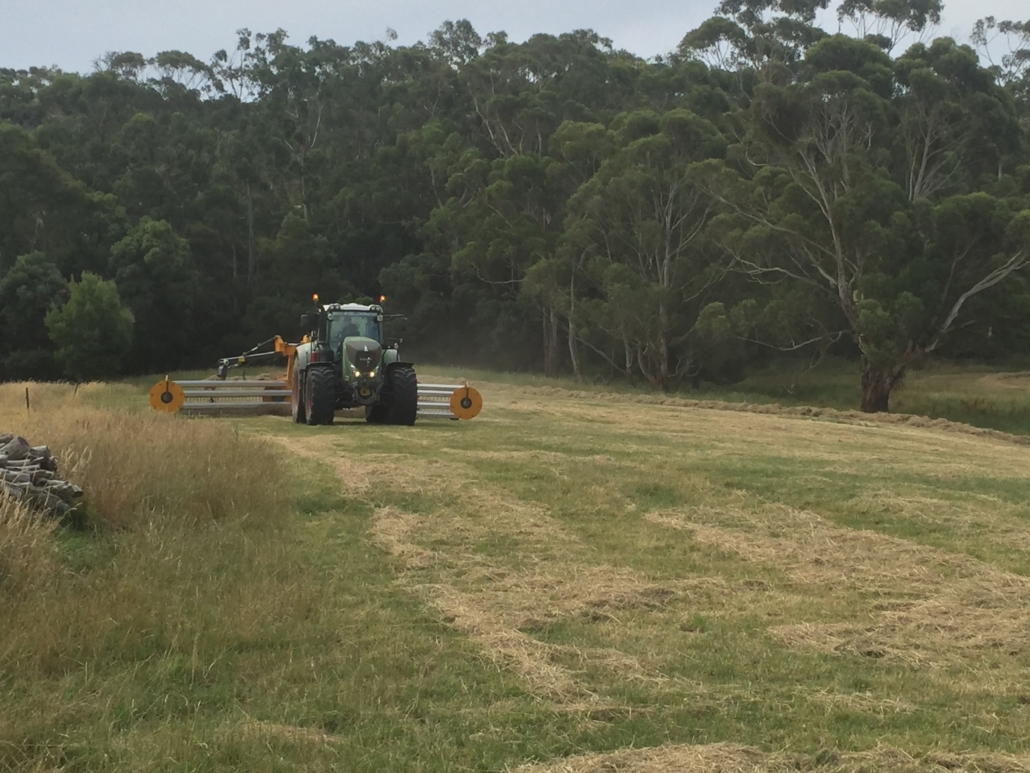

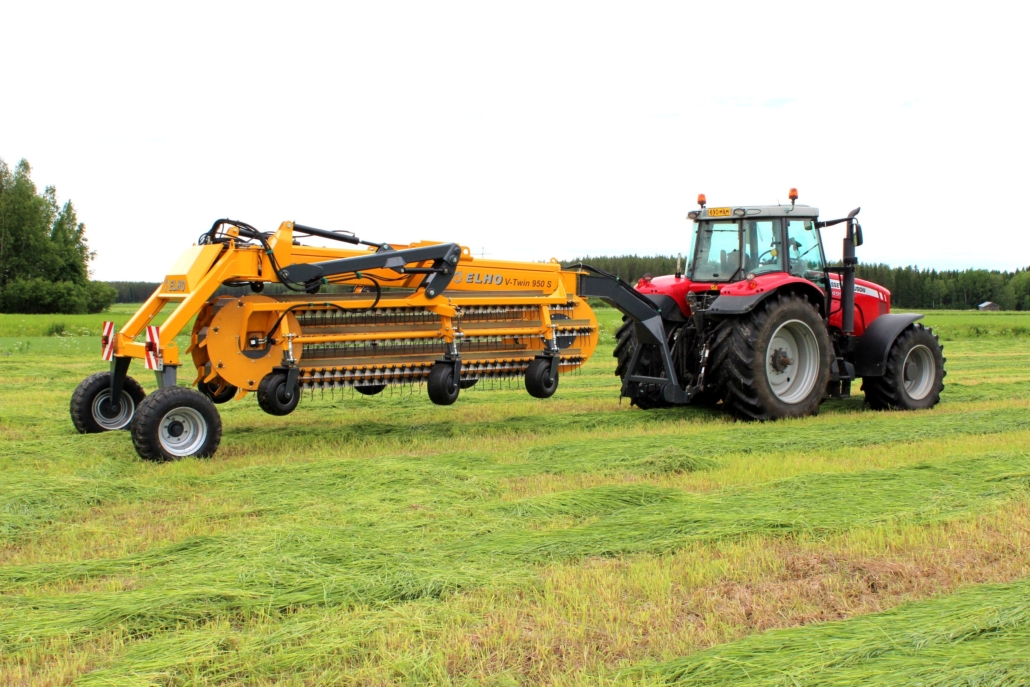

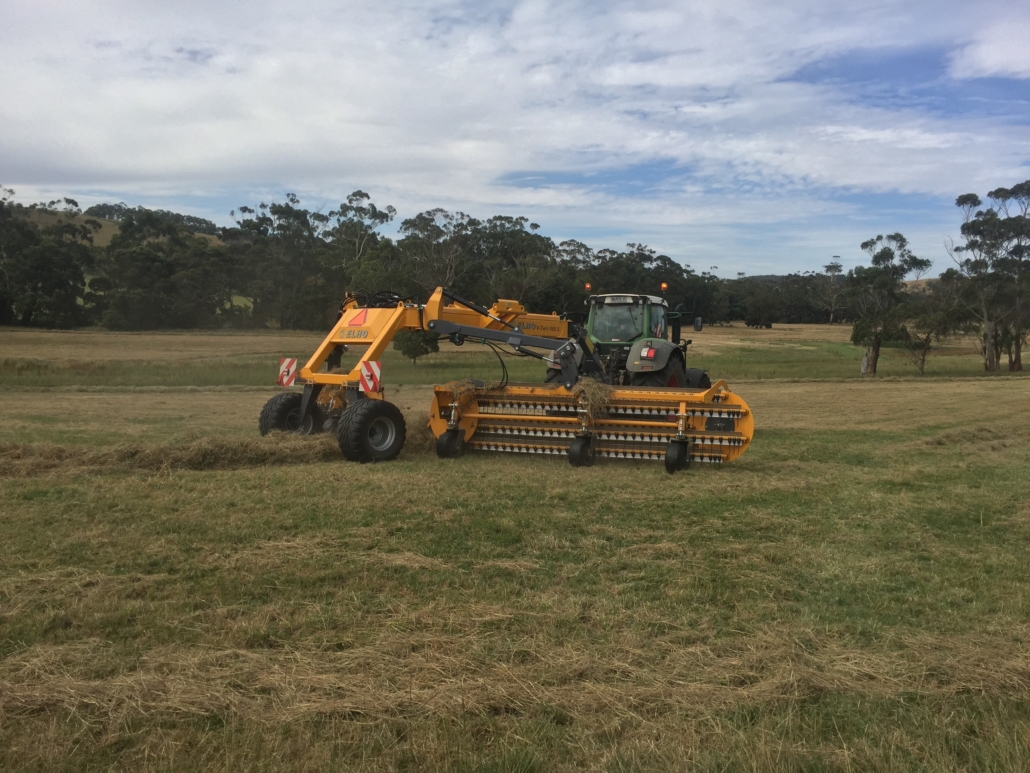

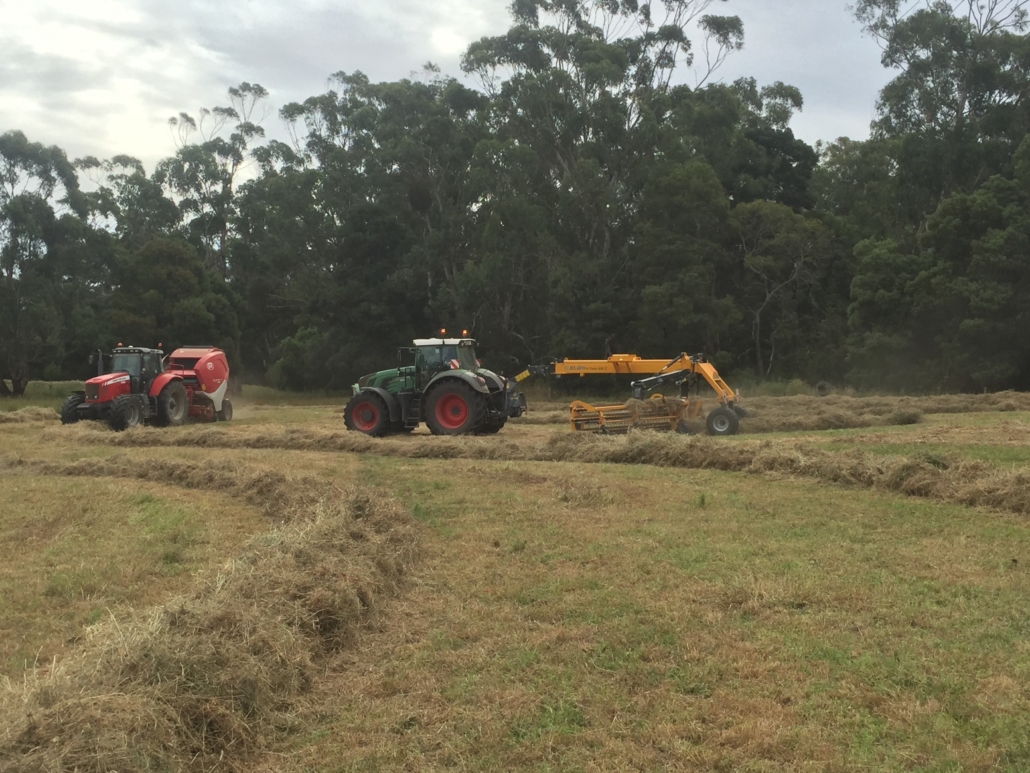

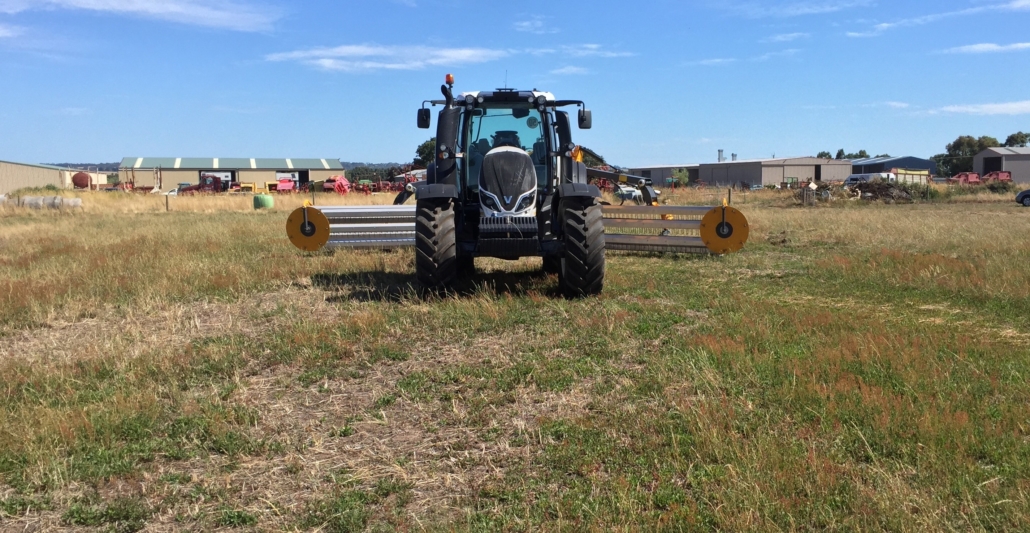

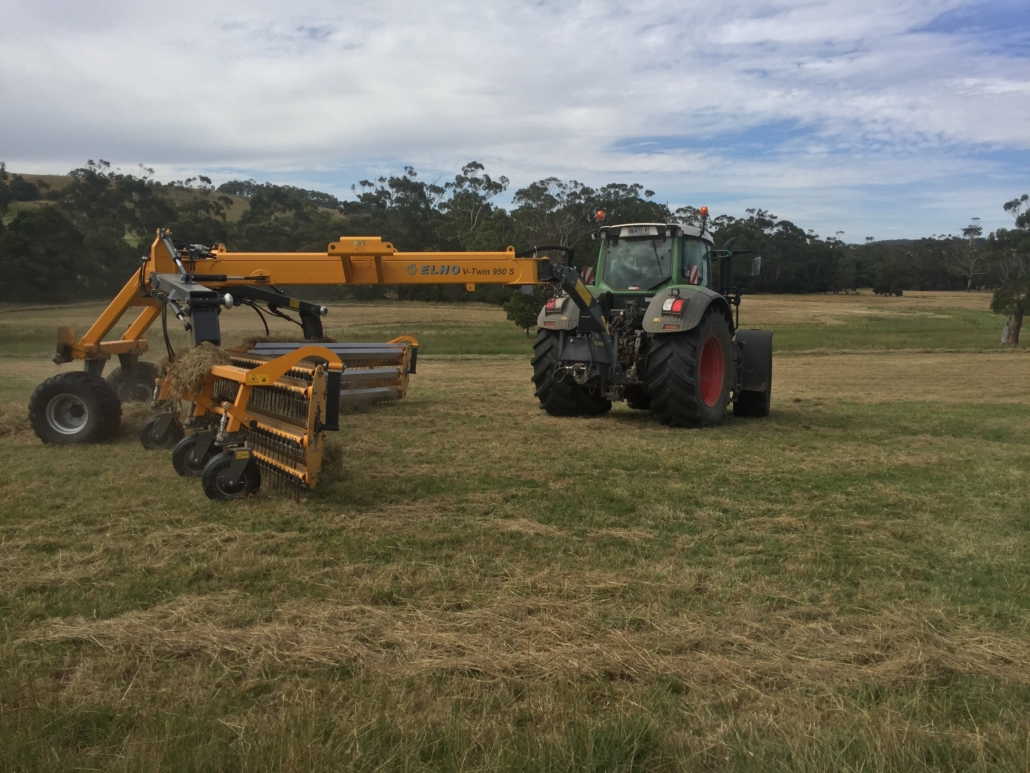

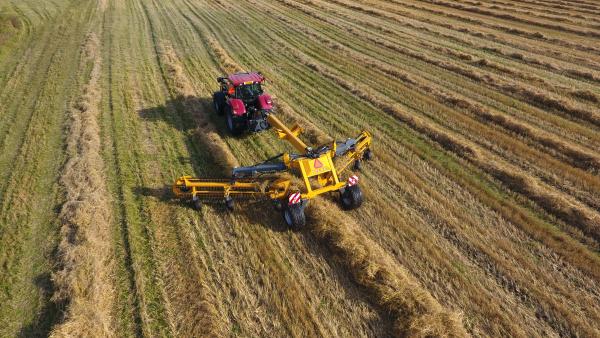

The new ELHO V-Twin 950 Super swather with up to 9.5 m working width!
Harvesters are becoming more effective and they now have the capacity to pick up swaths with more forage. ELHO has developed a new wide trailed swather: the V-Twin 950S with a hydraulically adjustable working width of 4.5–9.5 metres.

The new V-Twin 950S is equipped with the Hydro-Balance suspension to ensure that the machine follows the ground surface smoothly. It also features double rotors that lift the forage and mowe it in the air it to the centre. This results in top-quality forage. The swath width can be optimised based on the harvester.

Specifications

Working width, m: 4,5-9,5*
Swath width, m: 1,3-2,2
Swathwidth adjustment mechanical: Standard
Side shift at the draw bar, m: 1,8
Tine pattern: 7
Rotor diameter, mm: 860
Number of rake tines, pcs: 476
Transport width, m: 2,4-3,2**
Transport height, m: 2,8
Transport length, m: 7,8
Tyre size: 500/50-17.5
Weight, kg: 3500
Hydraulic connection-single action: 2
Hydraulic connection-double action: 1
Hydraulic connection-free return: 1
Hydraulic motor, pcs: 2
Required oil flow: 35l/min
Hydraulic pressure, min/max bar: 175-210
3 point linkage: Cat.2
Electrical connection ISO/TR 12369: 12V/10 Amp
