Bale Wrappers

The ELHO Sideliner 1540 Pro is an efficient automatic wrapper for round bales!

The ELHO Sideliner 1540 Pro bale wrapper features a low wrapping table for loading and wrapping and offloading while retaining a suitable unloading height for allowing the bale to rotate. These robust machines have been popular for decades.

The loading fork automatically lifts the bale to the centre of the wrapping table, so the weight is evenly distributed on both the wheels and the tractor. The sturdy wrapping table is equipped with three chain-driven support rollers and is mounted directly to the frame. Four end-support rolls keep the bale in place at its sides. The sturdy drop mat reduces the risk of damage to wrapped bales, especially on rough ground.

The Sideliner 1540 Pro comes standard with a single wrapping arm. Hydraulic synchronising in the automatic Sideliner 1540 Pro model ensures that the overlapping mechanism stays even and film is applied tightly around the bale, ensuring top-quality forage. The Sideliner 1540 Pro loads and wraps automatically and can also drop the bales automatically.

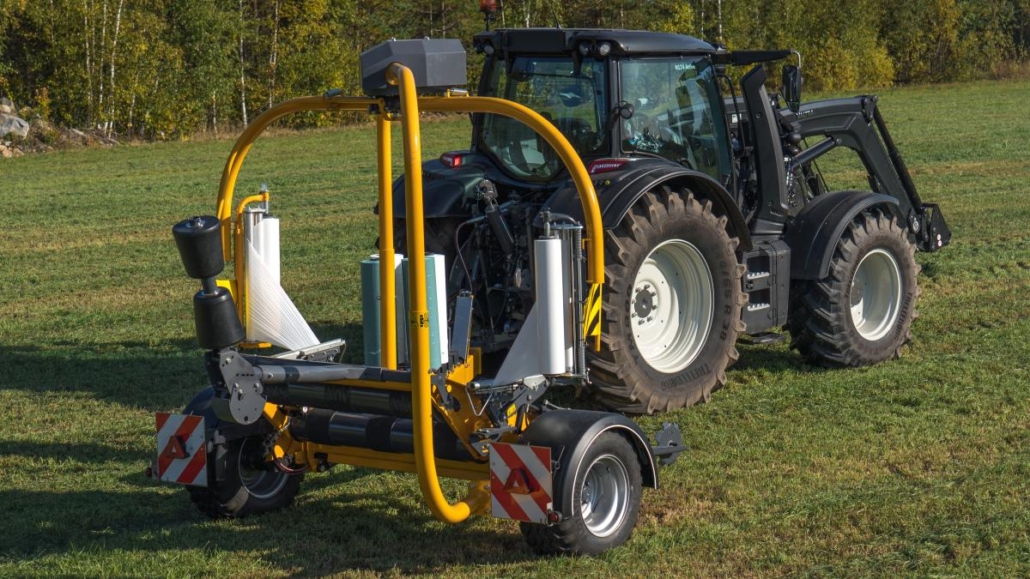

The ELHO Sideliner 1790 Pro is an automatic wrapper for large diameter round bales!

The versatile ELHO Sideliner 1790 Pro can easily wrap bales in sizes up to 1,8 metres in diameter, as the bale loading capacity is an impressive 1600 kilos. The strong loading arms automatically align the bale to the centre of the wrap table. The satellite wrap arms feature dual 750mm plastic pre-stretchers and film break sensors. The hydraulic control of the tow bar ensures a smooth and convenient handling of the wrapper. Other standard features include a light kit and mudguards that keep the wrapper clean even on long transfer journeys.

Wrap over 60 bales an hour with the ELHO Proliner 1200!

The ELHO Proliner 1200 handles the entire wrapping process automatically, from loading to offloading.

The easy-to-use ELHO Opus control system enables high-speed wrapping – even in excess of 60 bales per hour, depending on the availability of bales. The machine is equipped with two 500mm plastic pre-stretchers with film break sensors.

The robust load arm is designed to centre the bale to the middle of the wrapping table. The wrapping table has two rollers whose synchronised rolling ensures smooth rotation of the bales. The bale is supported sideways by two support rollers. The hydraulic system has a valve block that can utilise the LS hydraulic system. A bale turning ramp is available as an option to make collecting bales even faster.
