V-Twin 950 Super
About
The new ELHO V-Twin 950 Super swather produces clean forage efficiently with a working width up to 9.5 meters!
As harvesters become more powerful, they have the capacity to pick up swaths with more forage. ELHO has developed a new wider trailed swather: the V-Twin 950S with a hydraulically adjustable working width of 4.5–9.5 meters.
The new V-Twin 950S is equipped with HydroBalance suspension to ensure that the machine follows the ground surface smoothly. It also features double rotors that lift the forage and move it in the air it to the center. This results in top-quality forage. The swath width can be optimised according to the harvester.
The standard V-Twin 950S model can also shift the swather to the right or left side of the tractor. This is useful especially if the space between the swaths is small and you want to avoid driving on the swaths. Another standard feature is the possibility to use only one of the rotors for swathing.
The V-Twin 950 S can be easily prepared for transport. The machine is narrow and relatively low compared to its working width.
Specifications
| Working width, m | 4,5-9,5* | Weight, kg | 3650 |
| Swath width, m | 1,3-2,2 | Hydraulic coupling, single action | 2 |
| Swath width adjustment, hydraulic | X | Hydraulic coupling, double action | 1 |
| Swath width adjustment, mechanical | – | Hydraulic connection-free return | 1 |
| Side shift at the draw bar, m | 1,8 | Number of hydraulic motors | 2 |
| Tine pattern | 6 | Required oil flow, l/min | 35 |
| Rotor diameter, mm | 860 | Hydraulic pressure, min/max bar | 175-210 |
| Number of rake tines | 476 | 3 point linkage | Cat.2 |
| Transport width, m | 2,4-3,2** | Front linkage | – |
| Transport height, m | 2,8 | Front loader connection, euro | – |
| Transport length, m | 7,8 | Electrical connection ISO/TR 12369 | 12V/10 Amp |
| Tyre size | 500/50-17.5 | ||
| * Depending on swath width | |||
| ** Variable track width | |||
| X = Standard O = Option – = Not available | |||
Addons
- Swath splitter
- Hydraulic unit
- Wheels 560/45-22,5
- Hydraulic brake kit

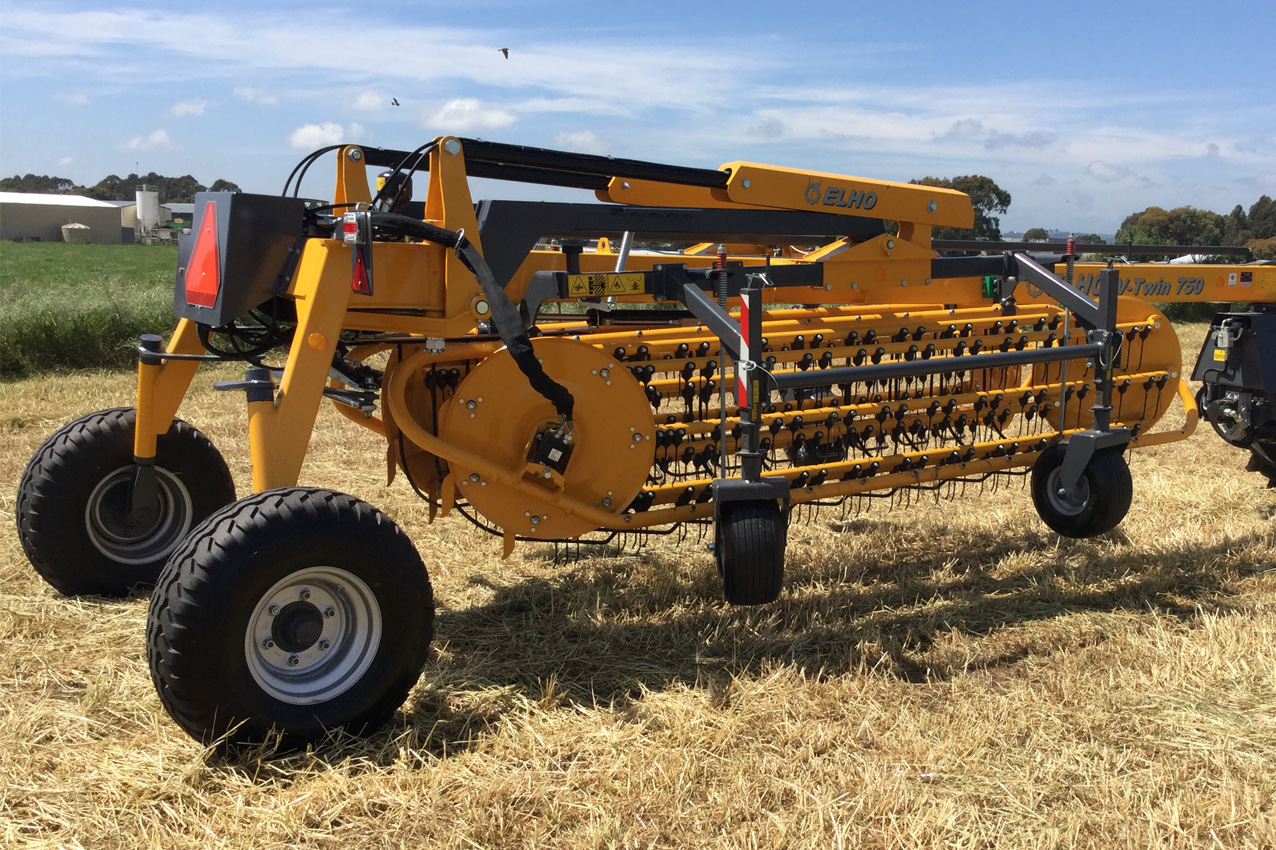

V-Twin 750
About
The ELHO V-Twin 750 swather produces clean forage efficiently with a working width up to 8 metres!
The ELHO V-Twin 750 swather is equipped with HydroBalance suspension to ensure that the machine follows the ground surface smoothly and the forage stays clean. It also features double rotors that lift the forage and move it in the air it to the centre. The swath width can be optimised according to the harvester.
A flexible working width of 3–8 metres that can be adjusted from the cab while driving makes the V-Twin 750 ideal for scattering and irregular sections as well. The size of the forage harvester does not matter, as the rotors are designed to create a clean, regular and fluffy swath as wide as necessary that is easy to pick up. The multi-tined rotors also reduce the risk of clogging.
Swathing with a harvester reduces the number of kilometres driven, increases the efficiency of harvesting and improves the quality of the forage. ELHO swathers offer forage producers and contractors numerous benefits!
Specifications
| Working width, m | 3,0-8,0* | Weight, kg | 2200 |
| Swath width, m | 1,3-1,8 | Hydraulic coupling, single action | 2 |
| Swath width adjustment, hydraulic | – | Hydraulic coupling, double action | 1(2) |
| Swath width adjustment, mechanical | X | Hydraulic connection-free return | 0 |
| Side shift at the draw bar, m | – | Number of hydraulic motors | 2 |
| Tine pattern | 7 | Required oil flow, l/min | 25 |
| Rotor diameter, mm | 655 | Hydraulic pressure, min/max bar | 175-210 |
| Number of rake tines | 336 | 3 point linkage | Cat.2 |
| Transport width, m | 2,6 | Front linkage | – |
| Transport height, m | 1,8 | Front loader connection, euro | – |
| Transport length, m | 6,9 | Electrical connection ISO/TR 12369 | – |
| Tyre size | 300/80-18.3 | ||
| * Depending on swath width | |||
| ** Variable track width | |||
| X = Standard O = Option – = Not available | |||
Addons
- Locking the rotors up VT 750
- WHEELS 380/55-17
- Swath splitter V-Twin 750
- Hydraulic unit

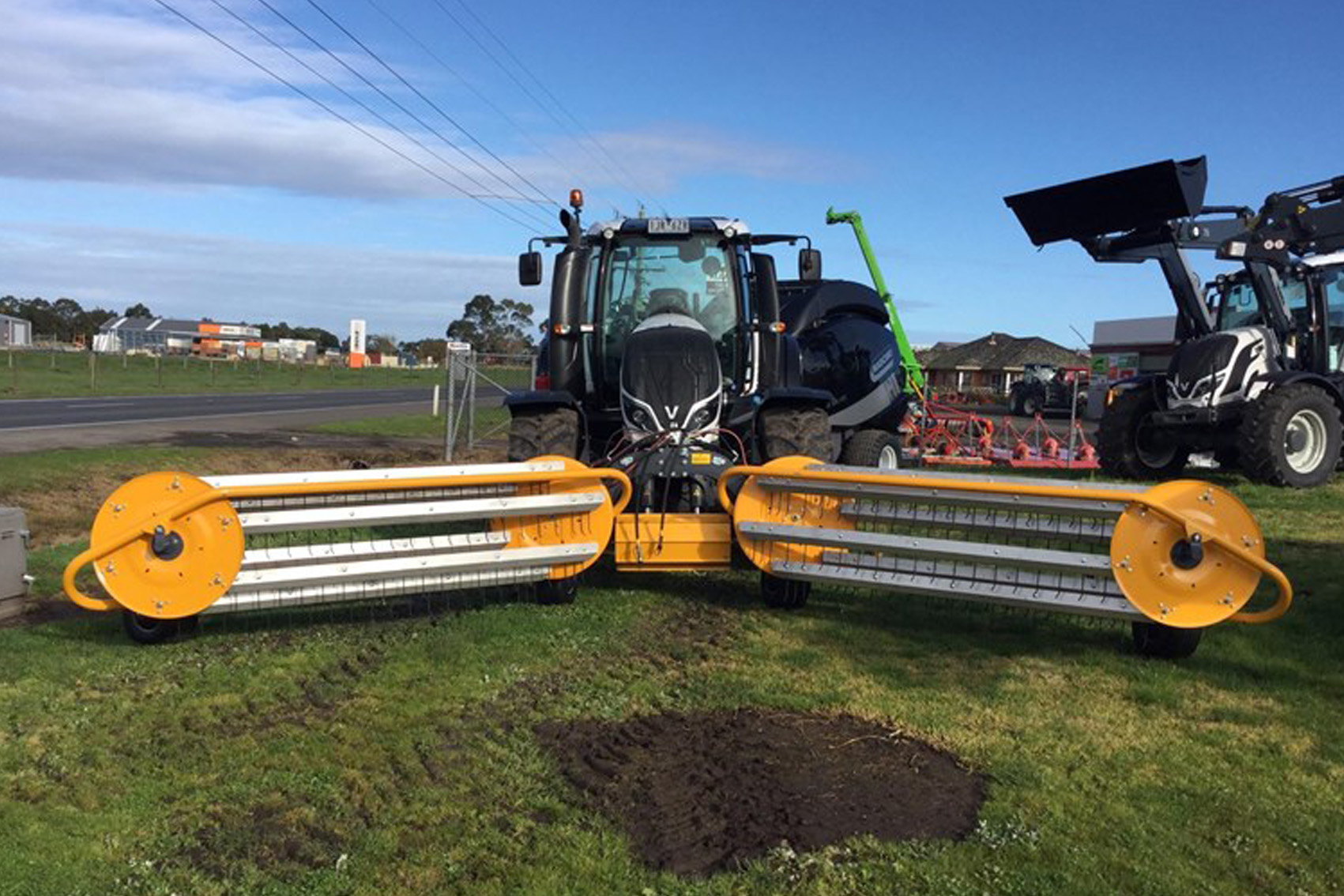

V-Twin 600
About
The ELHO V-Twin 600 is a cost-effective swather!
The ELHO V-Twin 600 front-mounted swather enables you to utilise the full capacity of a rear-mounted harvester.
The V-Twin 600 swather is designed to swath all types of forage cleanly, gently and efficiently. The V-Twin 600 leaves the forage to dry until harvesting. Swathing and harvesting simultaneously saves time and fuel and reduces driving in the field. Harvesting is also more efficient when swaths have more forage. Recommended combinations include an ELHO V-Twin 600 at the front and a baler, baler-wrapper or self-loading trailer at the back of the tractor.
Increase efficiency and ensure top-quality forage!
Specifications
| Working width, m | 6 | Weight, kg | 860 |
| Swath width, m | 1,2-1,3 | Hydraulic coupling, single action | 2 |
| Swath width adjustment, hydraulic | – | Hydraulic coupling, double action | 1 |
| Swath width adjustment, mechanical | X | Hydraulic connection-free return | 1 |
| Side shift at the draw bar, m | – | Number of hydraulic motors | 2 |
| Tine pattern | 6 | Required oil flow, l/min | 25 |
| Rotor diameter, mm | 655 | Hydraulic pressure, min/max bar | 175-210 |
| Number of rake tines | 240 | 3 point linkage | Cat.2 |
| Transport width, m | 2,4 | Front linkage | Cat.2 |
| Transport height, m | 3,4 | Front loader connection, euro | 0 |
| Transport length, m | 2,1 | Electrical connection ISO/TR 12369 | – |
| Tyre size | 18X8.5-8 | ||
| * Depending on swath width | |||
| ** Variable track width | |||
| X = Standard O = Option – = Not available | |||
Addons
- Drawbar kit V-Twin 600
- Frontloader adapter (Euro II)
- Roller kit
- Third wheel kit
Twin 4600
About
The ELHO Twin 4600 front-mounted swather with angled rotor provides increased productivity!
The ELHO Twin 4600 offers all the benefits of ELHO Twin models: it lifts and moves the forage or straw in the air so there is no need to ever drive over the forage.
Using a swather reduces the amount of driving on the field by half. Combining swaths before a harvester/baler enables the forage to be harvested faster, more efficiently and with lower fuel costs. The Twin 4600 is also ideal for turning and combining straw swaths. When using the Twin 4600 as a “regular” swather, two or three swaths can be combined effectively.
The fully hydraulic-driven Twin 4600 requires only 25 l/min of oil flow. The standard Twin 4600 can be mounted to a front linkage or a front loader (Euro II).
Specifications
| Working width, m | 4,1 | Weight, kg | 540 |
| Swath width adjustment, mechanical | X | Hydraulic coupling, single action | 1 |
| Tine pattern | 6 | Hydraulic connection-free return | 1 |
| Rotor diameter, mm | 655 | Number of hydraulic motors | 1 |
| Number of rake tines | 138 | Required oil flow, l/min | 25 |
| Transport width, m | 3 | Hydraulic pressure, min/max bar | 175-210 |
| Transport height, m | 1,6 | 3 point linkage | Cat.2 |
| Transport height, m | 2,3 | Front linkage | Cat.2 |
| Tyre size | 18X8,8-5 | Front loader connection, euro | X |
| * Depending on swath width | |||
| ** Variable track width | |||
| X = Standard O = Option – = Not available | |||

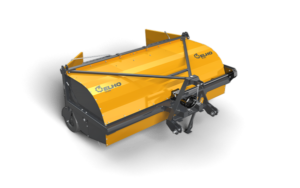

TR 300
About
The ELHO TR 300 produces dry forage quickly!
The ELHO TR 300 tedder can be used to make, turn, spread and move swaths. The ELHO TR features a rotor with a large diameter and double tines that are secured with lock plates. In this way, should they break, they will not end up in the chopper rotor of the harvester. The TR tedder’s large diameter rotor results in a fluffy and clean swath that dries quickly. TR tedders are ideal for the swathing, turning, moving and spreading silage, dry hay and straw.
Specifications
| Working width, m | 2,8 | Weight, kg | 735 |
| Swath width adjustment, mechanical | X | Tyre size | 18X8,5-8 |
| Tine pattern | 6 | Transport width, m | 3 |
| Rotor diameter, mm | 1000 | Transport height, m | 1,6 |
| Number of rake tines | 96 | Transport length, m | 2,2 |
| 3 point linkage | Cat.2 | ||
| * Depending on swath width | |||
| ** Variable track width | |||
| X = Standard O = Option – = Not available | |||
